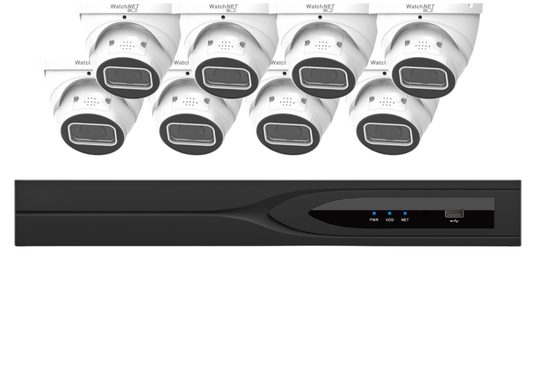

BLZ-16KIT8-50T3M

BLZ-16KIT8-50T3M

Categories , Tags , , ,

Recommended Add on Products

Additional Add Ons

Features

NVR Features:

    • Max. Incoming Bandwidth: 96 Mbps
    • Supports up to 16 channels of 8MP IP camera input
    • Decoding Capability: 16-channel 1080P decoding
    • 4K HDMI Output: Supports 4K resolution for clear video output
    • Playback: Up to 16  channels for simultaneous playback
    • PoE Ports: 16 PoE (Power over Ethernet) ports for camera connections
    • P2P and App Alarm Push: Supports Peer-to-Peer (P2P) connections and push notifications through the app
    • AI Search: Smart search functionality for efficient video review
    • AI Features by Camera:
      Face Detection
      Intrusion Detection
      Tripwire Detection (with human, vehicle, and non-motor vehicle classification)
      Object Detection
      Smart Motion Detection

Camera Features:
•

  • 5MP 1/2.7″ CMOS Sensor for high-definition imaging
  • H.264+ and H.265+ Compression for efficient video encoding
  • Infrared Range: Up to 40 meters for clear night vision
  • Warm Light Range: Up to 40 meters, ensuring optimal visibility in low light
  • Perimeter Protection: Advanced motion detection with SMD (Smart Motion Detection) support
  • Supports up to 256GB Micro SD Card for ample storage
  • Lens: 2.8mm fixed lens
  • Power Supply: 12 VDC or Power over Ethernet (PoE) support
  • IP67 Rating: Weatherproof and dustproof for reliable outdoor use

Technical Specifications

Model BLZ-EN16POE
System Operating System Embedded LINUX OS
Main Processor Industrial-grade embedded processor
Fenced Area Protection
by Camera		 Performance 16 channels
AI Search Search for pictures by channel, time,
and event type
Recording playback Performance 8 channels
Playback Mode Play; pause; stop; fast forward; fast backward; rewind; play by frame & Full screen; backup(cut/file) ; partially enlarge; audio on/off
AI Search Search for pictures by channel, time, and face attributes
Video Access Channel 8
Network Bandwidth Access: 160 Mbps; Storage: 160 Mbps;
Forward: 64 Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 4 × 1080p@30 fps
Video Output 1 × VGA output, 1 × HDMI output, supports
simultaneous video sources output for VGA & HDMI
Multi-screen Display 1, 4, 8, 16
Record
Playback		 Multi-channel Playback Up to 16 channels for playback
Record Mode Manual record; alarm recording;
Motion Detection recording; smart recording
Storage Local HDD; network
Backup USB storage device
Alarm General Alarm Motion detection, privacy masking, video loss, scene
changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict,
MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm Face detection, Fenced area protection
(intrusion and line crossing), IVS, people counting, heat map, and motion detection alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log,
preset, and email
Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP;
SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS;
IP Filter; DDNS; FTP; Alarm Server; IP Search
(Support WatchNET IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; Firefox
Storage Disk Group Yes
External Port USB 2 (1 × front USB2.0; 1 × back USB2.0)
Audio I/O 1 × RCA input / 1 × RCA output
HDD 2 SATA III ports, up to 10 TB for a single HDD.
The maximum HDD capacity varies with environment temperature
Alarm I/O 4/2
Network 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
General Power Supply 100 V–240 V, 47 Hz–63 HZ, 3.5 A
Power Consumption < 10 W (HDD not included, idling)
Total output power of PoE is 117W, the maximum output power of a single port is 25.5W
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F)
Consumption 7W
Dimension 215x235x45mm

Model

 BLZ-50T3M

Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 2880 (H) × 1620 (V)
Min. Illumination 0.006Lux(Illuminator off); 0Lux (Illuminator on)
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
RAM/ROM 128 MB / 512 MB
IR LEDs Number 2 (IR LEDs)
LED Distance IR distance 40m, Warm light distance 40m

Lens

 Max Aperture F1.6
Focal Length 2.8mm
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Lens Type Fixed-focal
Mount Type M12
Angle of View H: 111°; V: 59° ; D: 134°

Features

 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
Close Focus Distance 1.1 m (3.61 ft)
Gain Control Auto
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Noise Reduction 3D NR
Privacy Masking 4 areas

Video

 Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Resolution 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main stream: 2880 × 1620 @ (1–20) fps / 2960 × 1668 @ (1–20) fps / 2688 × 1520@ (1–25/30 fps)
Sub stream 1: 704 × 576 @ (1–25 fps)/ 704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS

Professional Intelligence

 Fenced Area Protection Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AI SSA Yes

Network

 Ethernet RJ-45 (10/100 Base-T)
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA;PPPoE; SNMP
Max. User Access 20 Users
Smart Phone iPhone, Android
ONVIF ONVIF (Profile S/Profile G/Profile T), CGI, P2P

Interface

 Audio Compression G.711a; G.711Mu; PCM; G.726

Built in mic
Alarm No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion, scene changing; audio detection; voltage detection; SMD; security exception

Environmental

 Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 4.3 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
Operating Temp./Hum. –35°C to +60°C / <95% RH
Protection Level IP67
Dimension 110 mm x 122 mm
Net/Gross Weight 630g
