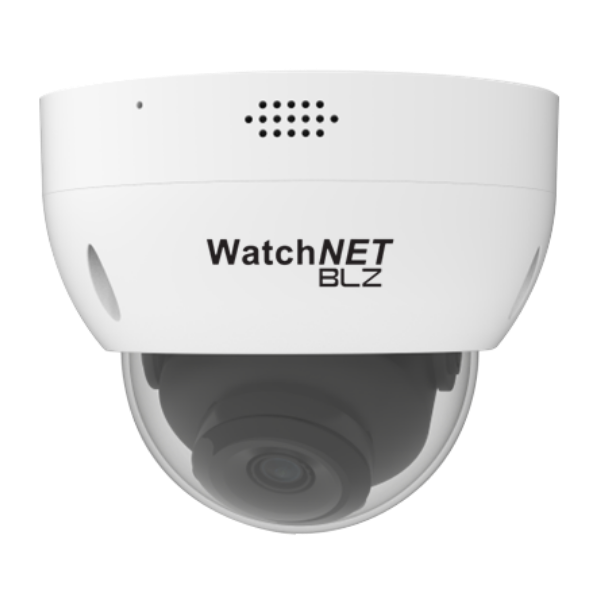

8MP Smart Dual Light Active Deterrence Dome Fixed Lens Camera
KEY FEATURES:
Perimeter Protection, Face Detection, SMD,
Smart Object Detection, People Counting,
Video Metadata, Parking Space Detection
| CAMERA | |
| Image Sensor | 1/1.8″ CMOS |
| Max. Resolution | 8MP, 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. illumination |
0.0008 lux@F1.6 (F1.0 optional) (Color, 30 IRE), 0.0004 lux@F1.6 (F1.0 optional) (B/W, 30 IRE), 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR distance 50m, Warm light distance 50m |
| Illuminator Control | Auto, Manual |
| LENS | |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| VIDEO | |
| Compression | H.264H; H.264M; H.264B; H.265 MJPEG (Customization) |
| Smart Compression | H.264H+; H.264M+; H.264B+; H.265+ |
| Video Frame Rate |
Main Stream: 8MP (1 fps–25 fps) Sub Stream: D1 (1 fps–25/30 fps) Third Stream: 1080P (1–25/30 fps) |
| Stream Capability | 3 Streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H.264: up to 16384 kbps; H.265: up to 16384 kbps |
| Day/Night | Color/B/W |
| BLC, HLC | Yes |
| WDR | 140 dB |
| White Balance | Yes |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Image Rotation | 180° |
| Mirror | Yes |
| AUDIO | |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; G.726ASF |
| ALARM | |
| Arming/Disarming | Yes |
| Sound Alarm | Yes |
| Light Alarm | Yes |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
| PORT | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel |
| Alarm Output | 1 channel |
| RS485 | Support |
INTELLIGENCE |
|
| Smart Motion Detection | Yes |
| Perimeter Protection | Intrusion, tripwire; loitering detection; people gathering; Parking detection |
| Face Detection | Face detection; track; snapshot; snapshot optimization |
| Parking Space Detection | Yes |
| Object Detection | Abandoned object; Missing object |
| People Counting | People counting in area |
| Video Metadata |
Motor vehicle, non-motor vehicle, face, human body detection; Info collecting Motor vehicle attributes; Non-motor vehicle attributes; Human body attributes; Face attributes |
| Heat Map | Support |
| AI Search | Work together with NVR |
| NETWORK | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol |
TCP/IP; UDP; HTTP; IGMP; ICMP; DHCP; RTP/RTSP; DNS; DDNS; FTP; NTP; PPPoE; UPnP; SMTP |
| Interoperability | ONVIF; CGI; P2P |
| User/Host | 16 (Total bandwidth: 80 M) |
| Storage | FTP; Micro SD card (support max. 256 G/FAT32) |
| Browser | IE: IE8 and later; Chrome; Firefox; Edge |
| Mobile Client | iOS; Android |
| POWER | |
| Power Supply | 12V DC (±30%) / PoE (802.3af) |
| Power Consumption | Basic: 2.5 W; Max. 5.2W |
| Heating | Optional |
ENVIRONMENT |
|
| Operating Conditions | -30°C to +60°C (-22°F to +140°F) / Less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67, IK10 |
STRUCTURE |
|
| Casing | Metal |
| Dimensions | 102 mm × Φ122 mm |
| Net Weight | 490g |
