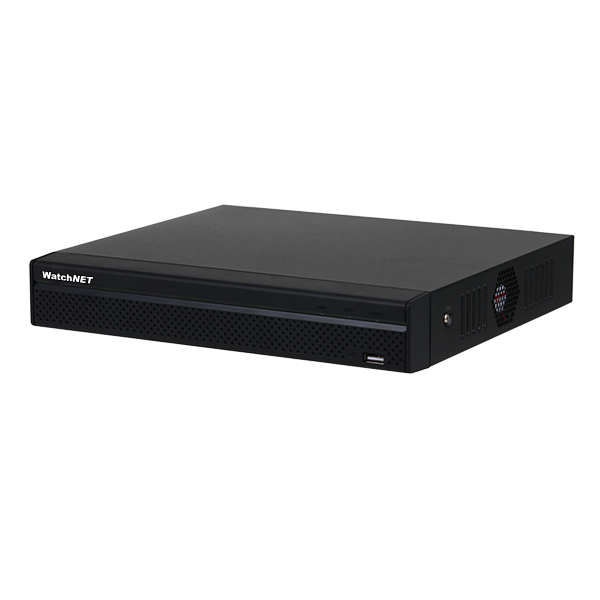

8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder
| Technical Specifications | |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operation Interface | Web, Local GUI |
| AI | |
| AI by Recorder | SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| Perimeter Performance of AI by Camera (Number of Channels) | 6 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Camera (Number of Channels) | All channels (6 targets/s) |
| Face Recognition | |
| Face Recognition Performance of AI by Camera (Number of Channels) | All channels (6 targets/s) |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle; reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (12 targets/s) |
| Audio and Video | |
| Access Channel | 8 channels |
| Network Bandwidth |
AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing. AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. |
| Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Decoding Capability |
AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 1080p@30 fps. AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 7-channel 1080p@30 fps. |
| Multi-screen Display | Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9 |
| Video Output | |
| Video Output |
1 HDMI, 1 VGA Simultaneous : HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous : HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Third-party Camera Access | |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM; G.726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVRs, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | NA |
| Alarm Output | NA |
| Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| Connectivity | |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General (physical & env) | |
| Power Supply | 53 VDC, 1.81 A |
| Power Consumption | Total output of NVR is <10 W (without HDD). Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W. |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 2.05 kg (4.52 lb) |
| Product Dimensions | 260.0 mm × 232.5 mm × 47.6 mm (10.24″ × 9.15″ × 1.87″) (W × D × H) |
| Packaging Dimensions | 374 mm × 119 mm × 311 mm (14.72″ × 4.69″ × 12.24″) (W × D × H) |
| Operating Temperature | −10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | −20 °C to +60 °C (−4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications |
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CELVD: EN 62368-1:2014 |
| Ordering Information | |
| Type | Model / Description |
| NETWORK VIDEO RECORDER |
Model: ENI-08POE Description: 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder |
